INTRODUCTION
Several causes produce the same user-facing symptom: ‘the Internet is slow.’ The provider, coverage, congestion, a weak Mesh link, cabling, switching or the client device can all be responsible.
A useful diagnosis changes one variable at a time until the layer where the problem appears becomes visible.
Step 1. Verify the incoming service
When possible, test by cable at the main equipment and repeat at more than one time of day. If instability exists there, blaming WiFi is premature.
Step 2. Repeat over WiFi beside the router
Use the same client. A large difference from the wired test points toward radio configuration, band, equipment capacity or the device itself.

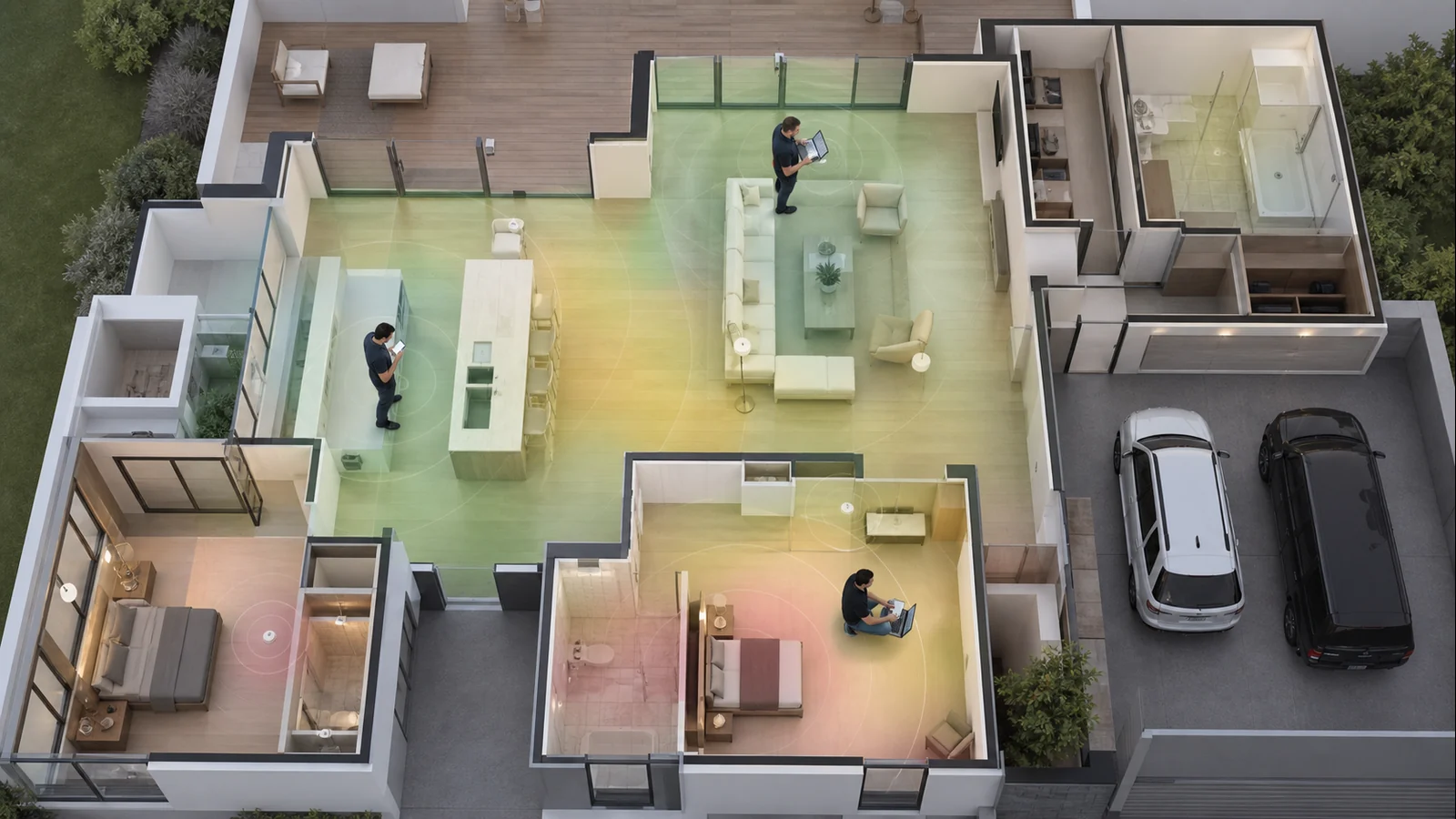

Step 3. Move to the exact problem area
Test where you work, where the television sits, in the room where calls drop and on the terrace guests actually use.
Example: the door that ‘breaks’ the call
A call works normally with the study door open and degrades when it closes. That small controlled test says more than replacing a router: material and signal path are directly involved.
Step 4. Compare with several users
If the network is sound for one person and deteriorates at peak time, capacity rather than coverage may be the issue.
Diagnosis by layers
Provider
Ethernet / router
WiFi radio
Backhaul
Capacity / concurrency
Client device
Application
Step 5. Observe the link between nodes
In Mesh and extender systems, the user's link to a node is only half the route. That node also needs a strong return path. Excellent local signal with weak backhaul creates a misleading experience.
Step 6. Document before changing anything
- Location
- Time
- Wired or WiFi test
- Client device
- Band
- Observed symptom
- Approximate active-user count
Documentation makes before-and-after comparisons possible.
| Test | If it works well | If it works poorly |
|---|---|---|
| Wired | Provider is probably sound | Review ISP, modem or incoming link |
| Near the AP | Base radio is probably sound | Review AP, router or client |
| Problem area | Coverage is sufficient | Review placement and materials |
| Peak time | Capacity is sufficient | Review concurrency, channels and backhaul |
From context to a decision.
I am still diagnosing
Open the diagnostic↗I have identified the required equipment
Explore equipment↗Several zones or users require design
Design the network↗Answers with the full context.
How many tests do I need?+
There is no fixed number. At minimum compare wired performance, WiFi beside the router and the problem area, then repeat during real use.
Is a speed-test app enough?+
It is useful evidence, but it does not explain cause without location, link type and usage context.
When does an access point help?+
When coverage or capacity must reach a specific area and the AP can receive a suitable network link.
What should I bring to a technical visit?+
A plan or sketch, problem zones, subscribed speed, previous tests, approximate users and important applications or devices.
